OPELIO

MEDICAL VIDEO RECORDING SYSTEM

  • Overview
  • Features and System Specifications

Simply use your fingertip to record, play, and edit video footage from surgery or tests.The OPELIO system transmit and share video throughout the hospital in real time or on demand.

Operability

High-resolution touch panel enables intuitive recording, playback, and editing.

Touch panel operation epitomizes ease of use in clinical settings

The OPELIO system is capable of importing video from surgery or tests, saving them as video or still images, and distributing them to other sites within the hospital. The unique user interface is optimized for touch panel operation, enabling anyone to perform operations such as selecting patient information, recording, playback, extracting still images, simple editing, and data transfer to a server, all done simply with just one finger. Sharp, high-definition images can be utilized in clinical settings without getting in the way of medical procedures.

Expandability

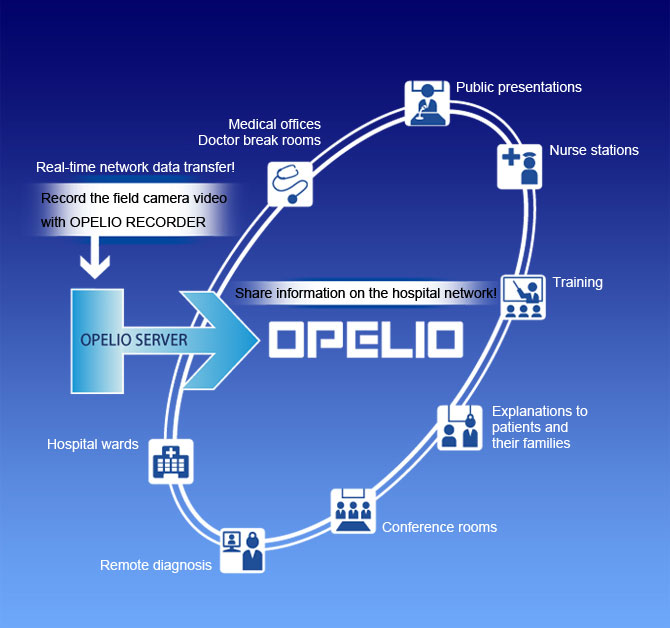

View in real time via web browser

Video from surgery taking place in an operating room can be viewed in real time via a PC web browser on the hospital network. Of course, video data already saved on a server can be searched using a web browser and viewed, edited, or downloaded. In addition to making medical treatment clear and understandable by providing visual information to patients and their families, these functions can also be used for training and research applications.

Seamless connection with various hospital information systems

The system can connect with hospital information systems such as HIS/PACS and anesthesia management systems. In addition to acquiring patient information, it is also possible to connect with a wide range of medical information such as surgical appointments, user accounts/passwords, clinical departments, and surgical procedures. Accessing videos from other hospital systems is also simple and smooth.

Features

  • Simple Operation

    Intuitive navigation optimized for touch panel operation, so you won’t have to use a manual

  • Simple Editing Function

    Simple editing on recorder, web-based simple editing

  • No License Required

    No client license required, web access, free player

  • Video Transmission

    Real-time transmission, on-demand transmission, downloading, downloading with video format conversion

  • High-Definition Support

    High resolution, compatible with full HD (1,920 x 1,080), 2 channels simultaneous input, simultaneous recording

  • Connects to Hospital Information Systems

    HIS/RIS connectivity, anesthesia management system connectivity, compatible with DICOM transmission, viewer connectivity

  • Security

    Account management, restricted access from PCs, anonymous display of patient information, download restrictions

  • Wide-Ranging Extendibility

    Redundant construction of server, storage expansion, backup

  • Long-term Storage

    High-volume storage compatibility, capacity expansion, automatic recompression, automatic deletion

Specifications

OPELIO Recorder (Main Unit)

SDI 2ch model HDMI 2ch model HDMI 4ch model
External form 221.5 (W) x 84.1 (H) x 298 (D) mm (excluding rubber foot)
Weight approx. 4.9 kg approx. 5.0 kg
Electric power consumption AC 100V, approx. 220 W (max.)
Video input and output terminal (Note 1) SDI IN x 2,
SDI OUT x 2
HDMI IN x 2,
HDMI OUT x 2
HDMI IN x 4
Interfaces USB 3.0 x 6 (back panel x 4 / side x 2), USB 2.0 x 2 (front panel x 2), RS232C x 2,
HDMI x 1, VGA x 1, DP x 1, 1000Base T x 2, AUDIO IN x 1, AUDIO OUT x 1, MIC x 1
Output format video: 1920 x 1080 (p/i), 720x 480 Pixel H.264
still image: 1920 x 1080, 640 x 480 Pixel JPEG / BMP / PNG / TIFF
Internal storage 500 GB
DICOM specification Verification Service Class (SCU), Storage Service Class (SCU),
Query / Retrieve Service Class (SCU), Modality Worklist
Accessories AC power cable (1.8 m), Key for HDD slot
Optional equipment (Note 2) Barcode reader, Magnetic card reader, Foot switch,
SD card reader, Blu-ray disc drive


OPELIO Recorder (Touch Panel)

15 inch 10 inch
External form with stand:
387 (W) x 285 (H) x 199 (D) mm
without stand:
387 (W) x 244 (H) x 33 (D) mm
with stand:
255 (W) x 177 (H) x 200 (D) mm
without stand:
255 (W) x 177 (H) x 29 (D) mm
Weight with stand: approx. 3.0 kg
without stand: approx. 1.5 kg
with stand: approx. 2.3 kg
without stand: approx. 0.8 kg
Resolution 1920 dots (H) x 1080 lines (V) 1280 dots (H) x 800 lines (V)
Touch panel technology Projected Capacitive
Touch interface USB type-B
Video signal Analog: Mini VGA / Digital: HDMI type A
Power supply AC 100V 50/60 Hz
Electric power consumption approx. 36 W approx. 24 W
Accessories AC adapter (1.8 m), Mini VGA cable (1.8 m), HDMI cable (1.8 m),
USB cable (1.8 m), Audio cable (1.8 m), CD-ROM,
2 cable clamps, 2 tie wraps, 5 M3 screws


OPELIO Server (Main Unit)

We can offer a wide variety of scalable system configurations and storage capacity.
For more details, please contact us.
Note 1: It can also support DVI, SDI, composite, and more with a video converter.
Note 2: Please contact us for further details of compatible equipment.
Please note that specifications, performance and technical data of the products are subject to change without prior notice.
